The AutoCal Series 2 System – Dynalog’s State-of-the-Art Calibration Technology
Dynalog is the world leader in robot cell calibration technology. Its mainstream product – the DynaCal system – is used for off-line robot cell calibration, and has been accepted by many major robot manufacturers and end-users as the most accurate and technically advanced robot calibration process available.
The AutoCal Series 2 system incorporates the proven calibration technology of the DynaCal product into an in-line, fully automated system designed specifically for process monitoring, repeatability control, and recovery purposes.
The AutoCal Series 2 System – How it works

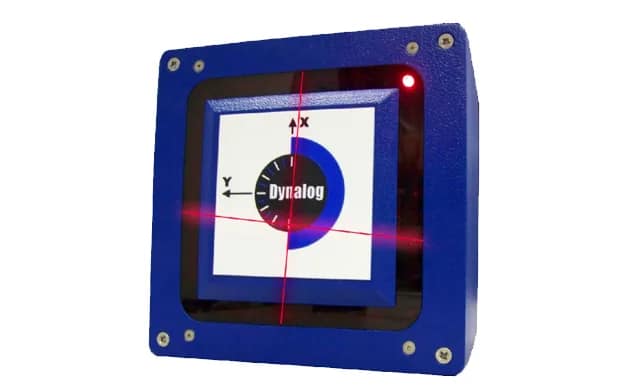

The AutoCal Series 2 System comes in different forms, depending on the particular robot controller and its level of integration (contact Dynalog for more information). However, a typical installation consists of (1) the AutoCal software, (2) twin beam lasers, and (3) a rugged industrial sensor. The AutoCal Series 2 System relies on simple and automatic measurements: no special artifact or interface required! Between production cycles, the robot automatically executes – in a matter of seconds – a “Quick-Check” measurement routine to assess overall system performance and to detect any drift or crash of the robot or TCP. Any changes to the robot structure or TCP can then be automatically corrected through the AutoCal Series 2 System’s compensation process. Finally, the AutoCal system confirms the accuracy of the corrected robot and its TCP, to ensure consistent quality and process control.
Manufacturers today rely more and more on industrial robots for efficiency and quality. Robots used for welding, cutting, material handling, dispensing, and assembly must operate at very high levels of reliability and repeatability/accuracy to meet the demands of modern manufacturing. This means that any environmental changes or mechanical failure of the robot system – whether the robot itself or any of its peripherals – can result in many hours of lost production or can generate large amounts of scrap parts.
The AutoCal Series 2 System – Dynalog’s State-of-the-Art Calibration Technology
