Introduction
In today’s high-speed, high-stakes manufacturing environment, precision isn’t just a goal—it’s a requirement. As industries push for tighter tolerances and shorter production cycles, traditional offline quality checks can’t keep up. That’s where automated Inline Gaging steps in, offering real-time measurement and feedback directly within the manufacturing process.
At Dynalog, we’re helping manufacturers move beyond inspection and into trueb process control with advanced Inline Gaging systems that deliver fast, reliable, and highly accurate results—without slowing down production.
What is Inline Gaging?
Inline Gaging refers to the process of measuring critical part features directly on the production line, often between machining steps or at final assembly. Unlike traditional gaging, which happens offline in a quality lab, inline gaging provides instant feedback—enabling teams to catch and correct issues before they become costly.
Why Automate the Inline Gaging Process?
Manual measurement introduces delays and the potential for human error. Automated Inline Gaging solves these problems by:
- Eliminating Bottlenecks – No need to stop the line or wait for lab results.
- Reducing Scrap and Rework – Real-time feedback helps prevent downstream defects.
- Increasing Repeatability – Automated systems ensure consistent measurements across shifts.
- Supporting Closed-Loop Control – Measurements can feed directly into CNC adjustments, creating a self-correcting process.
- Improved quality assurance – 100% part inspection becomes possible, not just random sampling.
Dynalog’s Approach to Inline Gaging
At Dynalog, we specialize in high-precision measurement and calibration solutions designed to integrate seamlessly into your production flow. Our automated Inline Gaging systems feature:
- Non-contact measurement with laser/vision-based sensors
- Uses off-the-shelf industrial robots
- Robot-cell Initial Absolute Accuracy, which is maintained over time by performing Temperature compensation
- Direct comparison of measured data to CAD data
- Data-rich reporting and real-time SPC dashboards
- Integration-ready software to connect with plant MES/ERP systems
Future-Proofing Robotic Automation

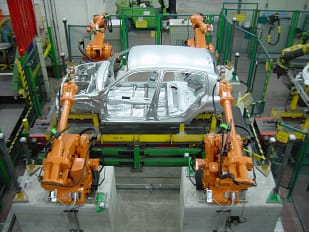

Our solutions are built to operate in real-world factory environments, maintaining precision even in the presence of vibration, thermal variation, and coolant spray. Whether it’s for body-in-white assembly, machined components, or welded subassemblies, Dynalog ensures that inline measurement doesn’t just monitor — it empowers.
Real-World Impact
One of our recent clients in the automotive sector reduced their measurement cycle time by over 70%, while also improving part consistency and reducing scrap rates. With automated inline gaging, they no longer have to choose between speed and precision—they get both.
